SS Spot Fountain Light (Heavy Duty)
Heavy-duty full stainless steel underwater spot light with 180° adjustable stand mount for dynamic fountain jets.
SS Spot Fountain Light (Heavy Duty)
The AQUALUXIS LIGHT HF039–HF042 series spot fountain lights are built for demanding fountain and water display environments. Made from solid SS 304/316 stainless steel with an integrated pivoting bracket, these luminaires can be angled precisely towards water columns, foam jets, and cascades.
Technical Specifications Table
| Body Material | SS 304 / 316 Solid Stainless Steel |
| Lens | PC Glass |
| LED Chip | Cree / Edison |
| Protection Class | IP68 Submersible Waterproof |
| Warranty | 2 Years Manufacturer Warranty |
| Mounting | Stand Mounted Pivoting System |
| Beam Angle | 10°, 20°, 30°, 40°, 45°, 60°, 90° |
| Wire | Poly Cab 1 Metre Wire |
| Color Options | WW, CW, RGB, Red, Blue, Green |
| Available Wattages | 3W, 6W, 9W, 12W, 18W, 27W, 36W |
| Dimensions | Outer Dia 3.5" to 140mm |
Engineered Advantages
- Heavy-duty marine stainless steel body engineered for high water pressure
- Precision-engineered stand bracket allows 180° tilt adjustment
- Cree & Edison high-flux LED emitters for intense water column punch
- Full IP68 submersible certification with double sealed cable entry
- Wide variety of optical beam angles from narrow 10° spot to wide 90° flood
Recommended Installations
- Architectural Fountains
- Public Plaza Water Features
- Musical Fountains
- Pond Water Jets
- Resort Fountains
Model Dimensional Variants & Wattage Matrix
| Model Code | Dimensions (Diameter / Height) | Rated Power Output | Action |
|---|---|---|---|

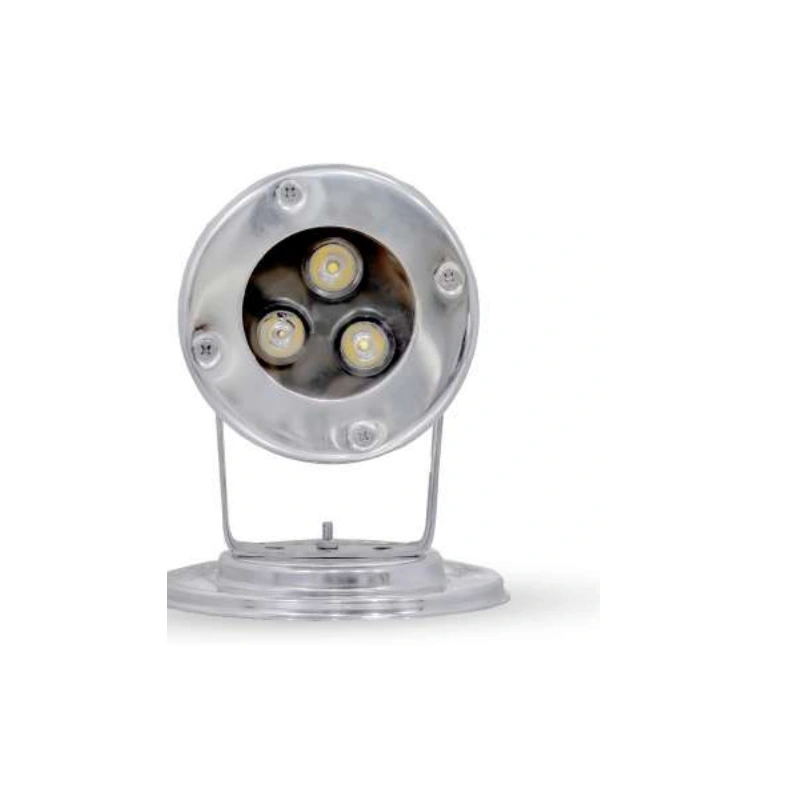

| HF039 | Back Dia 2.2", Outer Dia 3.5" | 3 Watt / 9 Watt | |

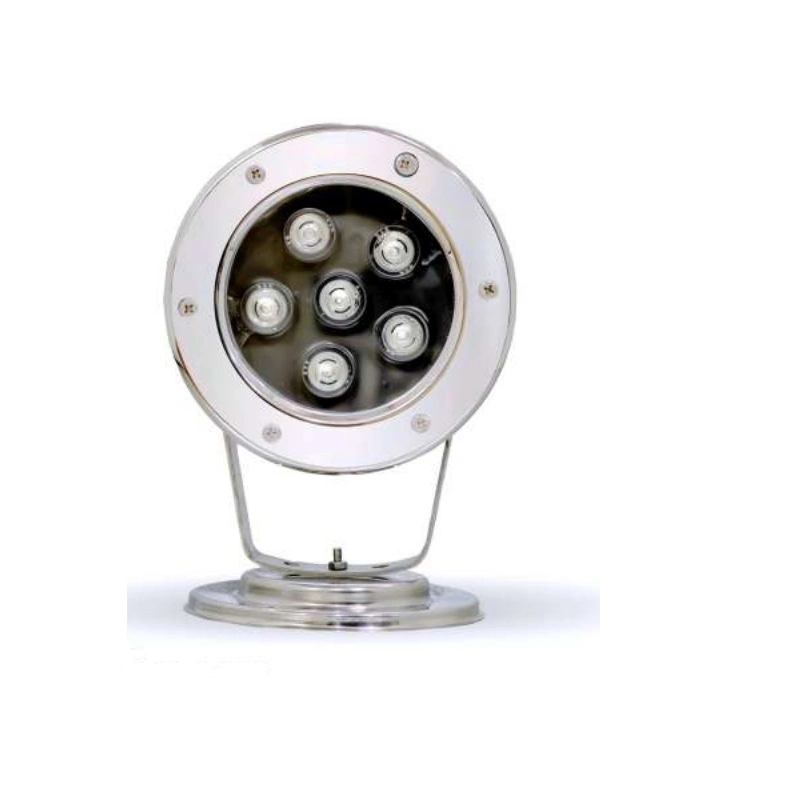

| HF040 | Back Dia 65mm, Outer Dia 110mm, Length 110mm | 6 Watt / 18 Watt | |

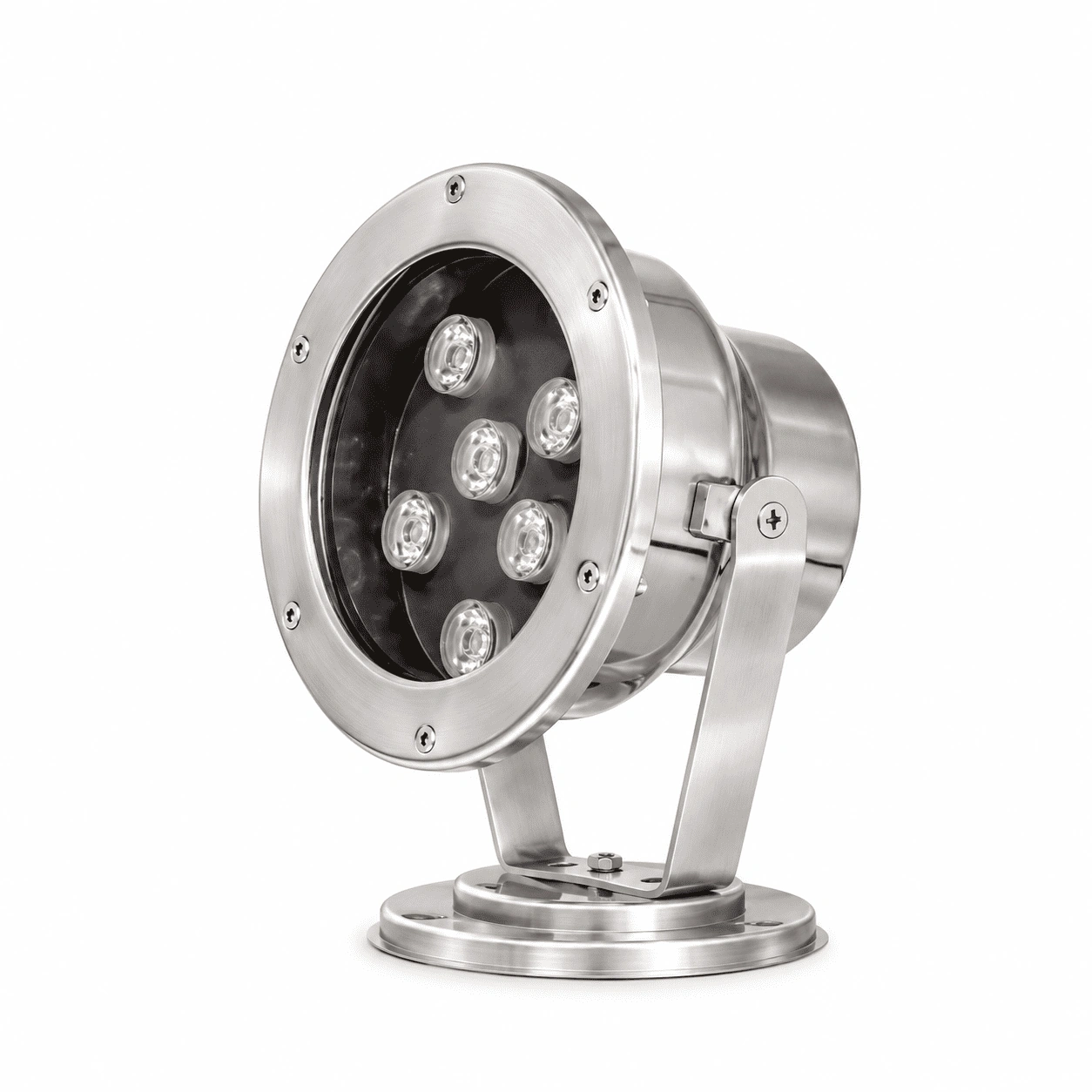

| HF041 | Back Dia 85mm, Outer Dia 140mm, Length 110mm | 9 Watt / 27 Watt | |
| HF042 | Back Dia 95mm, Outer Dia 140mm, Length 110mm | 12 Watt / 36 Watt |
