Spot Fountain Stand Light
Compact circular stand-mounted fountain spot lights available in multiple diameters and wattages up to 36W.
Spot Fountain Stand Light
Constructed from SS 304/316 or aluminium plate model with a sturdy circular disc stand base. Designed for quick placement on fountain basin floors or tiered cascade trays, casting focused or broad illumination on dancing fountains and geysers.
Technical Specifications Table
| Body Material | SS 304 / 316 / Aluminium (Plate Model) |
| Lens | PC Glass |
| LED Chip | Power LED Edison |
| Protection Class | IP68 Submersible |
| Warranty | 2 Years Manufacturer Warranty |
| Mounting | Stand Mounted Disc System |
| Beam Angle | 10°, 20°, 30°, 40°, 45°, 60° |
| Wire | Poly Cab 1 Metre Wire |
| Color Options | WW, CW, RGB, Red, Blue, Green |
| Available Wattages | 3W, 6W, 9W, 12W, 18W, 27W, 36W |
| Dimensions | Dia 3" to Dia 6" (Thickness 22mm - 1") |
Engineered Advantages
- Stable base stand allows fast positioning without drilling basin floors
- Compact low-profile thickness (22mm to 1") minimizes water disruption
- Edison Power LEDs engineered for maximum photometric output underwater
- IP68 submersible protection with chemical-resistant PC glass
- Available in monochromatic warm/cool white or dynamic RGB configurations
Recommended Installations
- Circular Fountains
- Tiered Stone Fountains
- Reflecting Pools
- Garden Water Features
Model Dimensional Variants & Wattage Matrix
| Model Code | Dimensions (Diameter / Height) | Rated Power Output | Action |
|---|---|---|---|

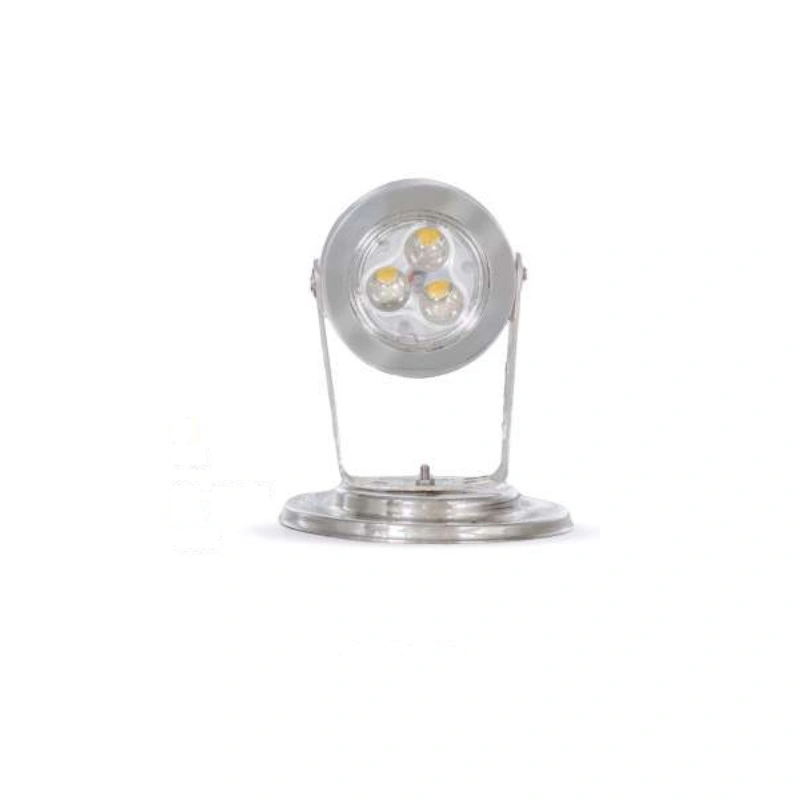

| HF043 | Dia 3", Thickness 22mm | 3W / 9W | |

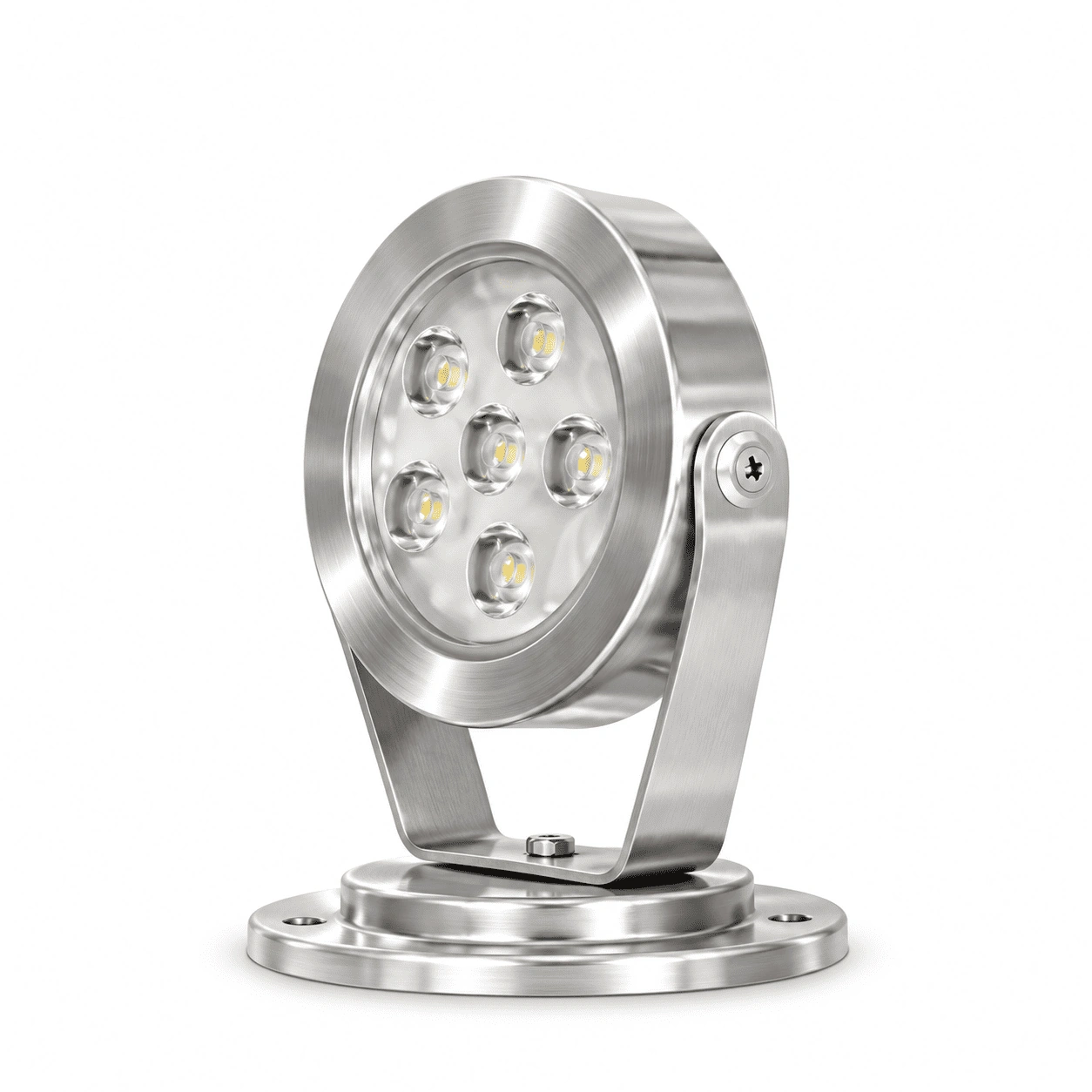

| HF044 | Dia 4", Thickness 22mm | 6W / 18W | |

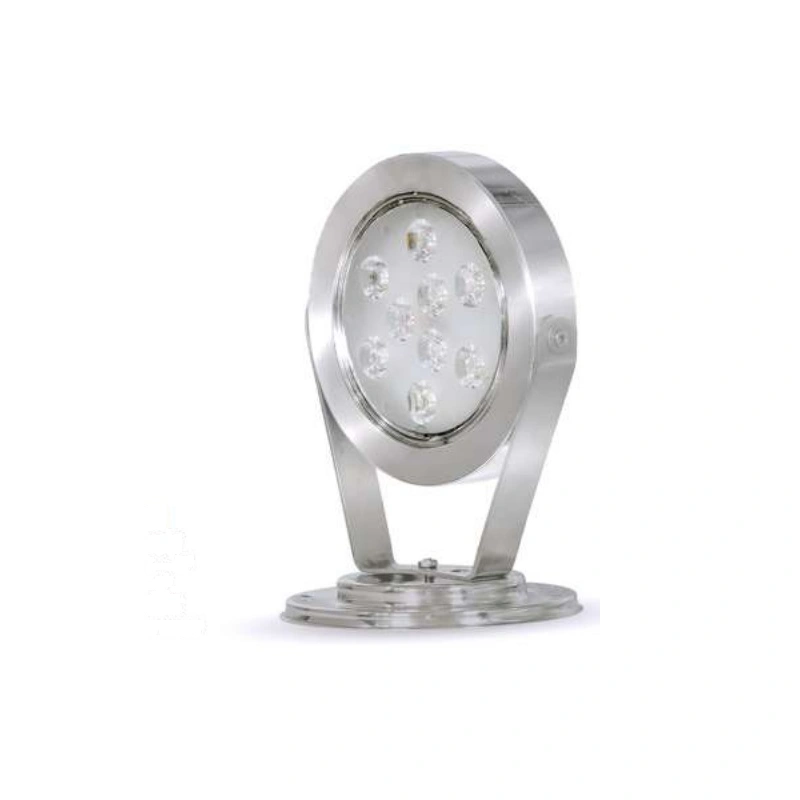

| HF045 | Back Dia 5", Depth 1" | 9W / 27W | |
| HF046 | Dia 5", Thickness 1" | 12W / 36W | |

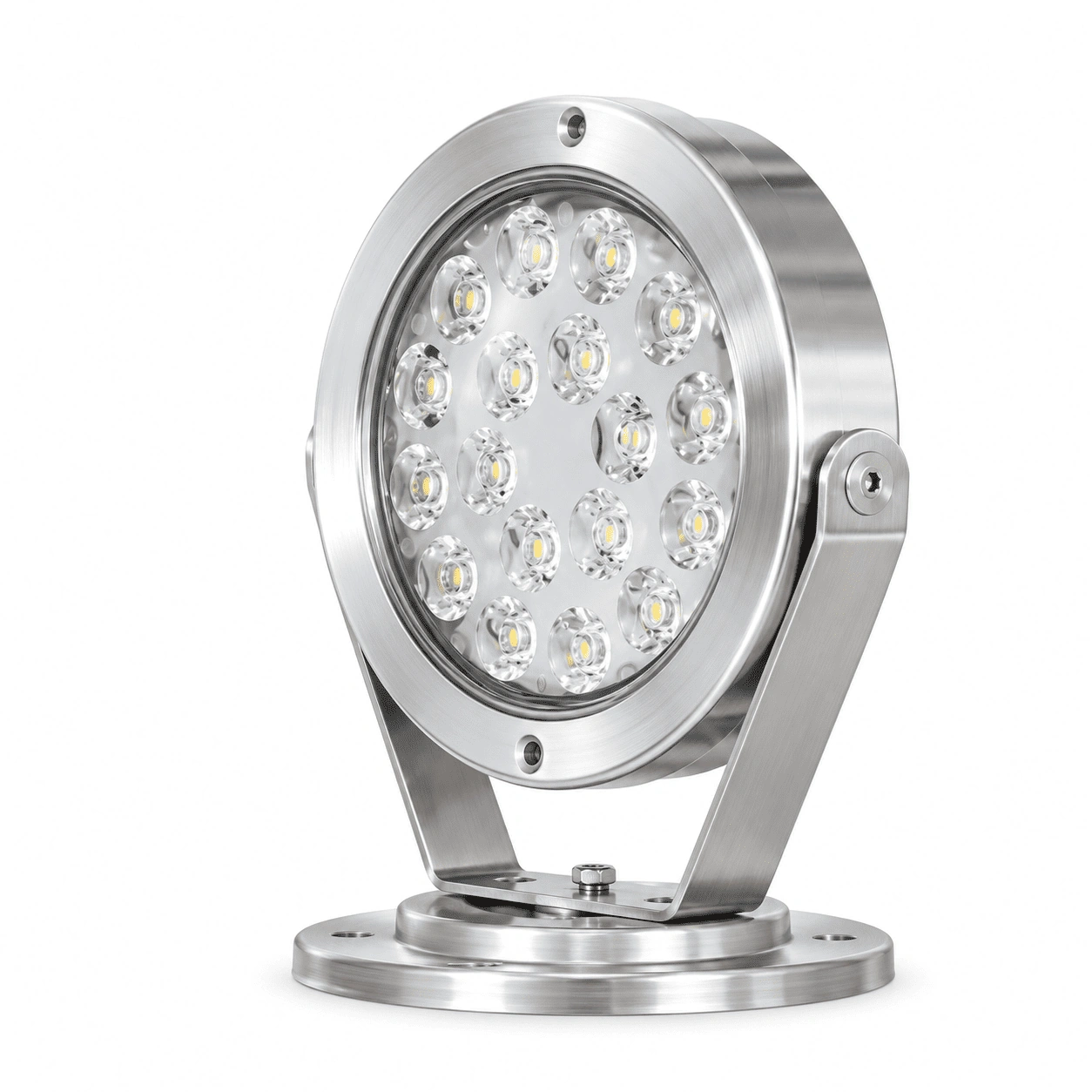

| HF047 | Dia 6", Thickness 1" | 18W |
Frequently Asked Questions
