Adjustable Center-Hole Nozzle Fountain Light
Adjustable 1.5" center hole fountain fixture for angled jets and customized water trajectories.
Adjustable Center-Hole Nozzle Fountain Light
Featuring an adjustable 1.5-inch center aperture, the HF058–HF061 series permits angling of the nozzle jet while keeping the luminaire firmly seated. Ideal for arching water streams, multi-tier sprays, and dynamic fountain choreography.
Technical Specifications Table
| Body Material | SS 304 / 316 / Aluminium (Plate Model) |
| Lens | PC Glass |
| LED Chip | Power LED Edison |
| Protection Class | IP68 Submersible |
| Warranty | 2 Years Manufacturer Warranty |
| Mounting | Stand Mounted System / Center Hole Fit |
| Center Hole | 1.5" (Adjustable Mechanism) |
| Beam Angle | 10°, 20°, 30°, 40°, 45°, 60° |
| Wire | Poly Cab 1 Metre Wire |
| Color Options | WW, CW, RGB, Red, Blue, Green |
| Available Wattages | 3W, 6W, 9W, 12W, 18W, 27W, 36W |
| Dimensions | Outer 5", Length 2" |
Engineered Advantages
- 1.5-inch adjustable center collar allows precise aiming with angled water jets
- Power LED Edison emitters generate intense light penetration through aeration
- Solid stainless steel construction prevents vibration under high pump pressure
- IP68 submersible protection suitable for permanent immersion
- 2-year warranty backed by AQUALUXIS LIGHT manufacturing expertise
Recommended Installations
- Arching Jet Fountains
- Parabolic Water Features
- Decorative Fountains
- Resort Water Displays

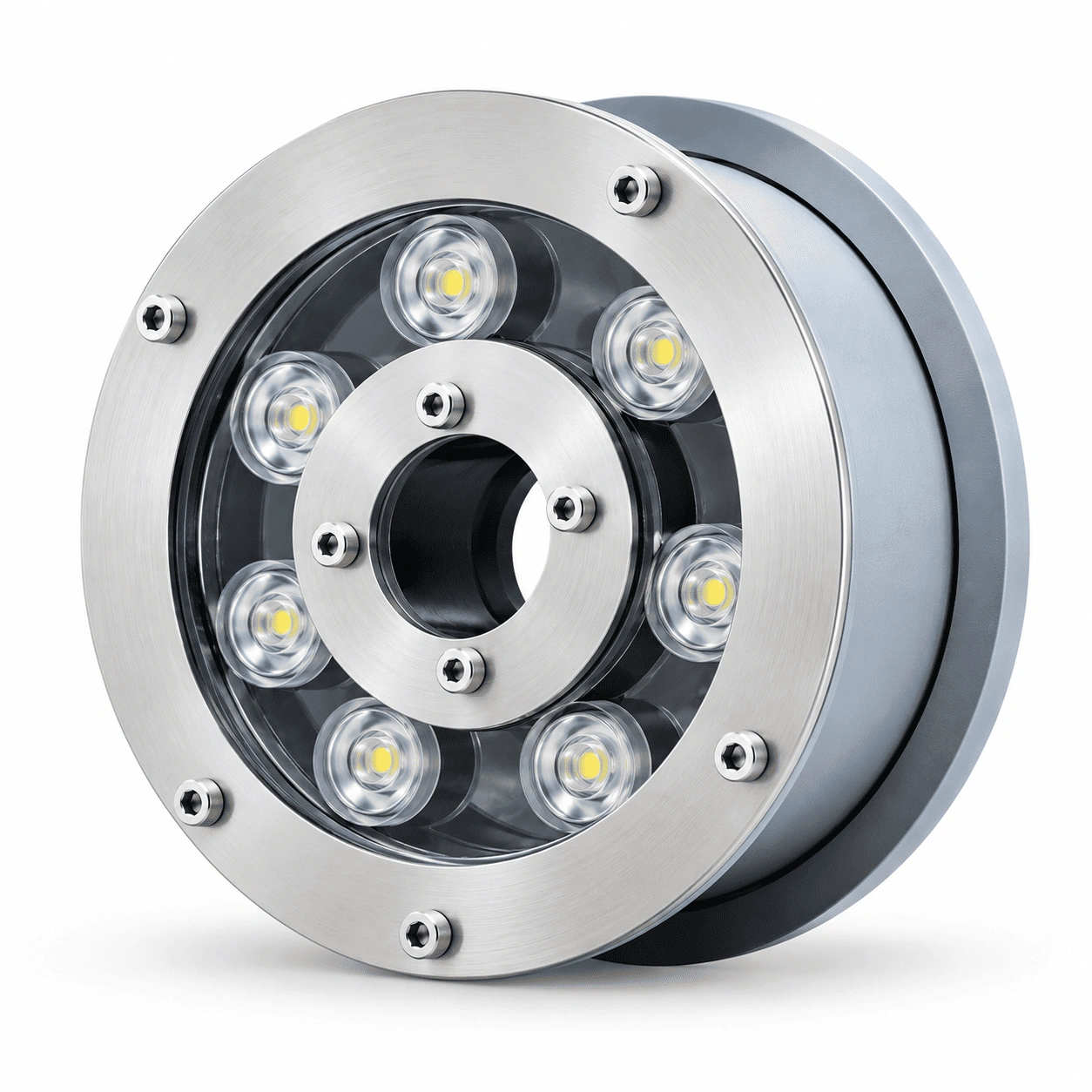

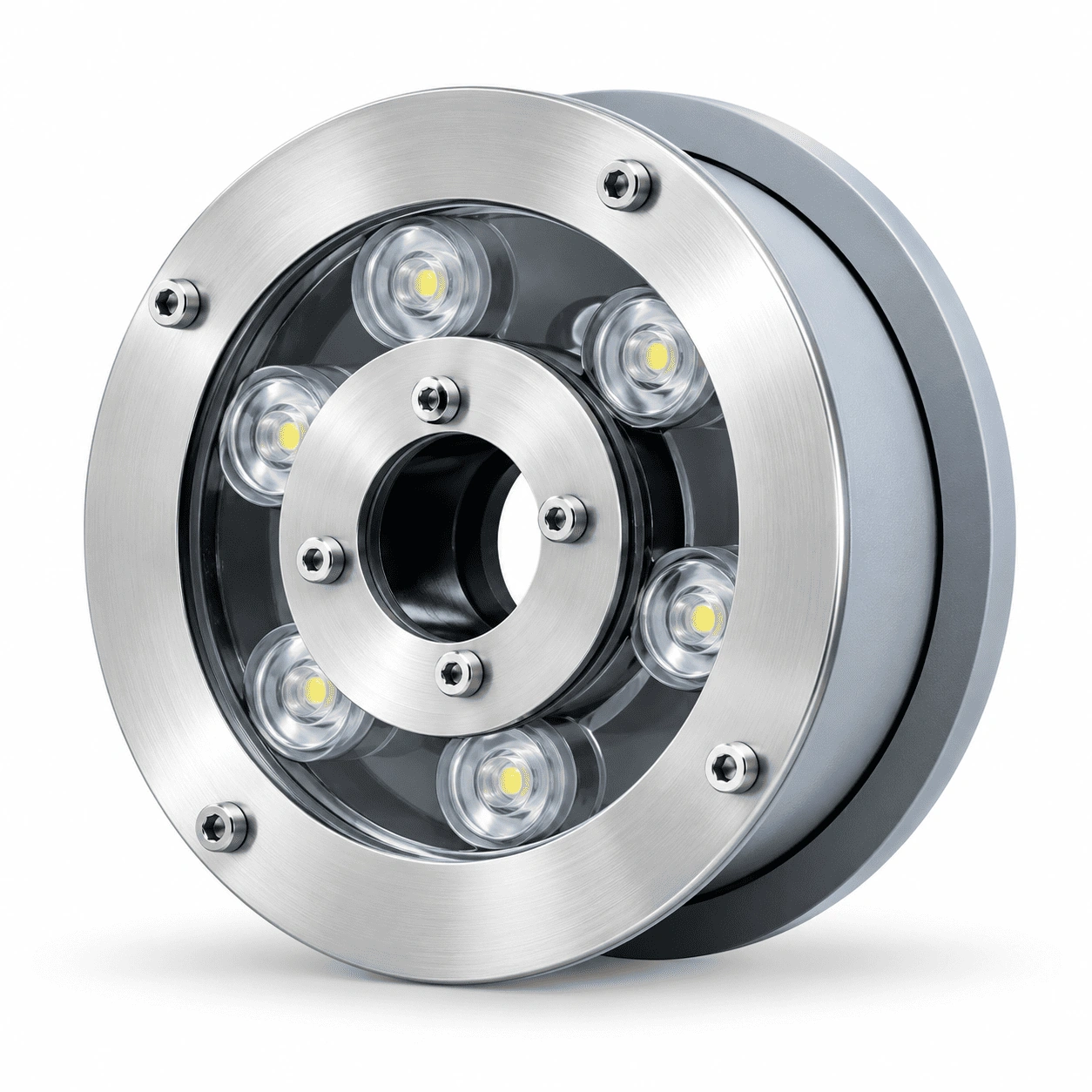

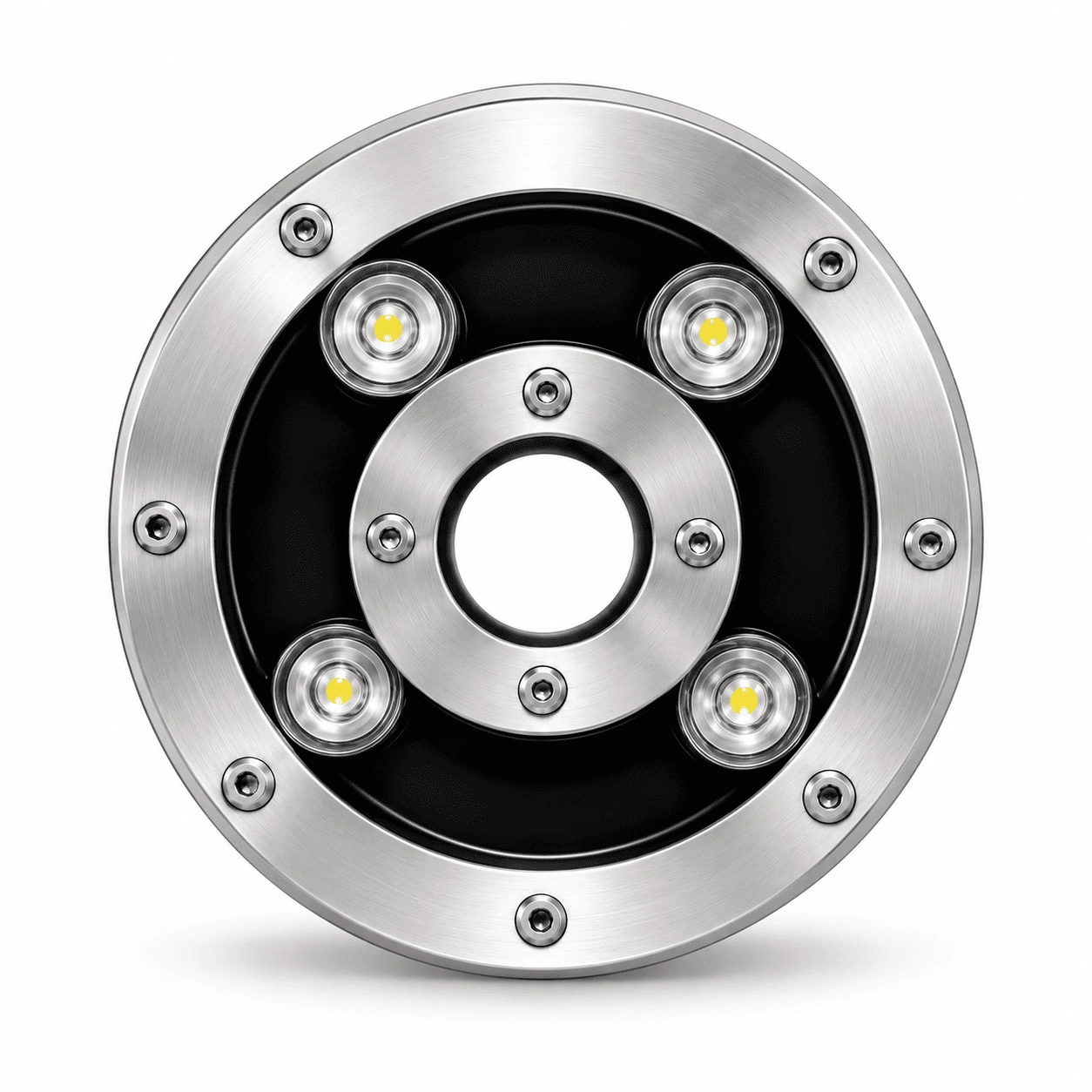

Model Dimensional Variants & Wattage Matrix
| Model Code | Dimensions (Diameter / Height) | Rated Power Output | Action |
|---|---|---|---|
| HF058 | Outer 5", Center Hole 1.5", Length 2" | 3W / 9W | |
| HF059 | Outer 5", Center Hole 1.5", Length 2" | 6W / 18W | |
| HF060 | Outer 5", Center Hole 1.5", Length 2" | 9W / 27W | |
| HF061 | Outer 5", Center Hole 1.5", Length 2" | 12W / 36W |
Frequently Asked Questions
