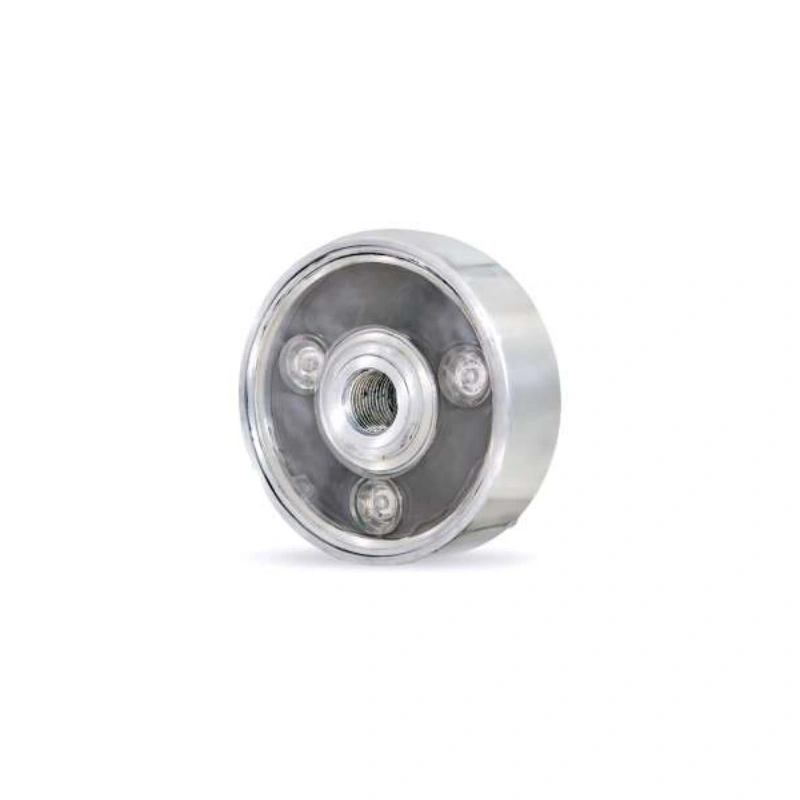

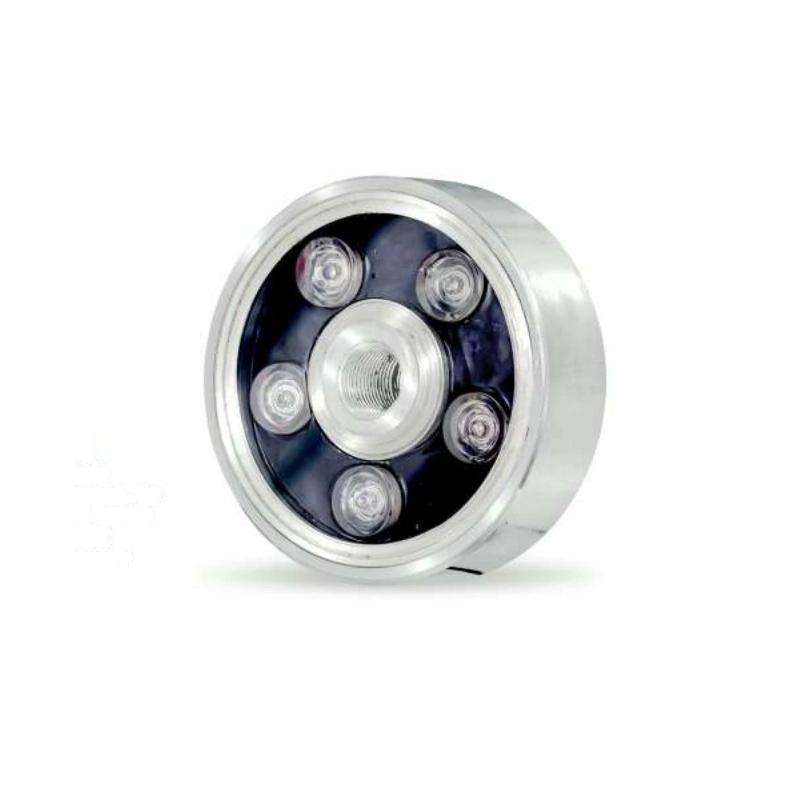

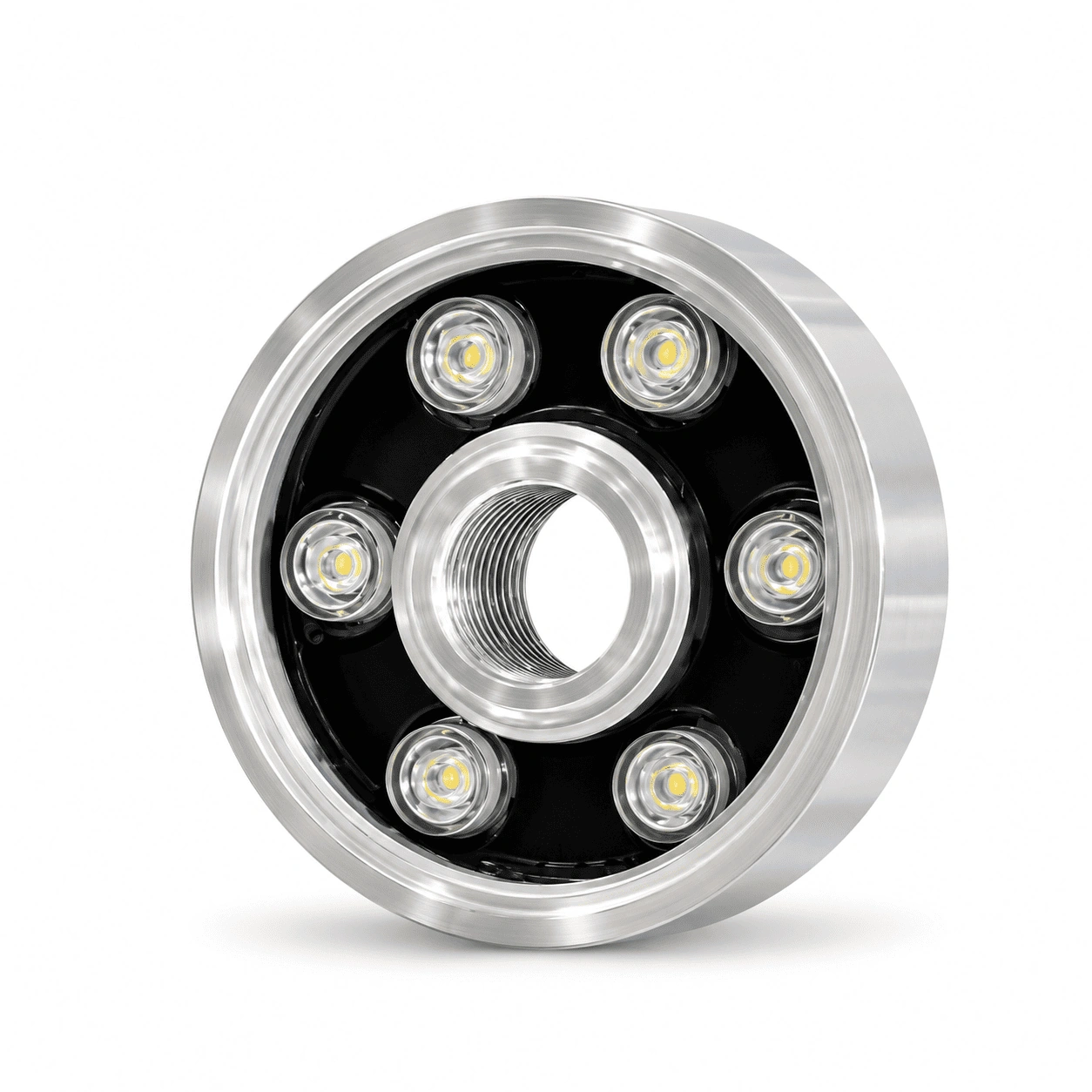

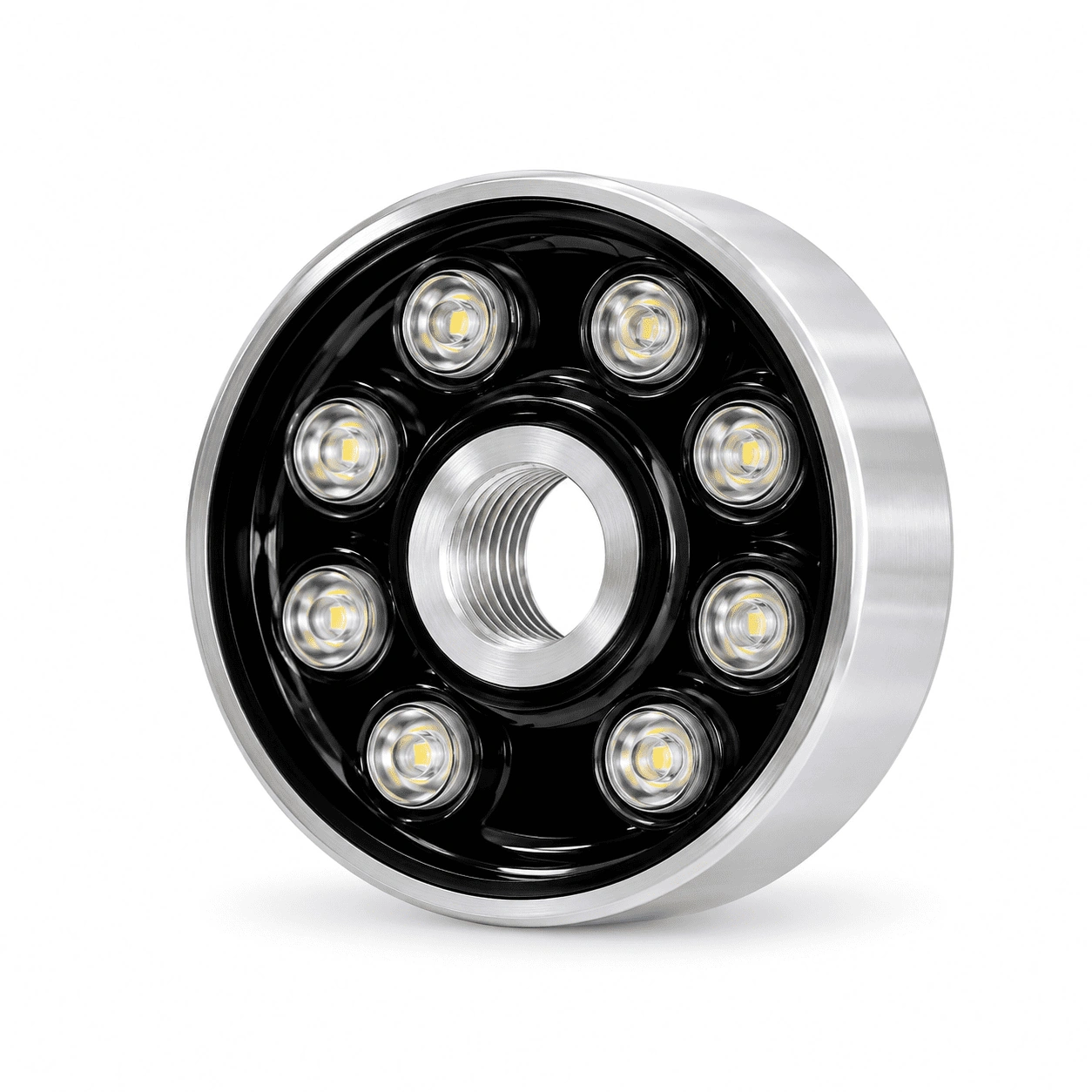

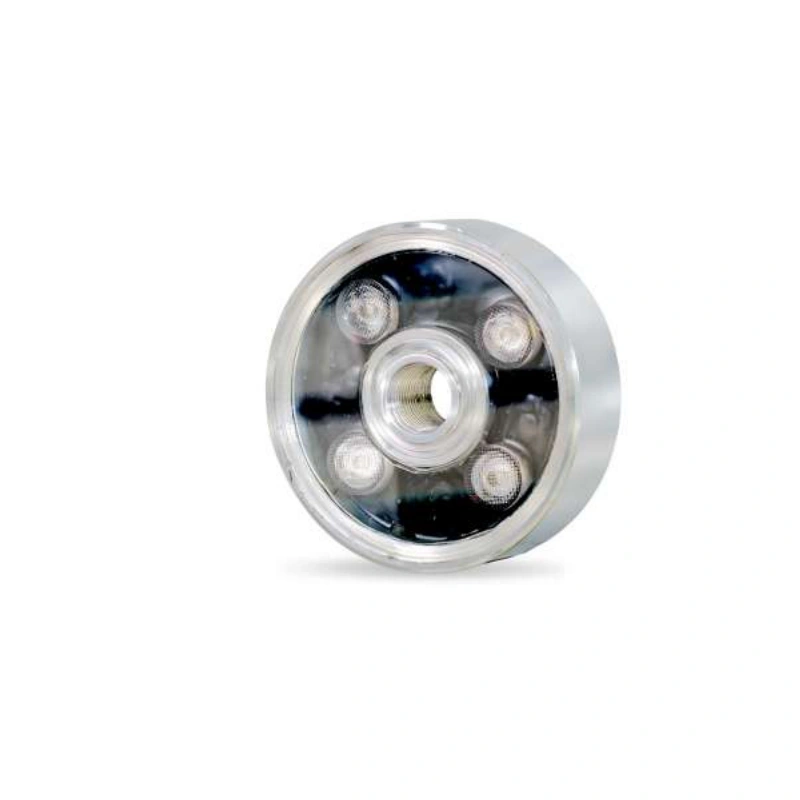

Nozzle Fountain Light (Center Hole / Thread)
Donut-type center-hole fountain light mounted directly onto nozzle supply pipes for 360° illuminated water columns.
Nozzle Fountain Light (Center Hole / Thread)
The center-hole threaded fountain luminaire mounts directly around the fountain nozzle, aligning the light beam symmetrically with the emerging water jet. This ensures 360-degree uniform color infusion directly through the core of the water column.
Technical Specifications Table
| Body Material | SS 304 / 316 / Aluminium (Plate Model) |
| Lens | PC Glass Sealed Ring |
| LED Chip | Power LED Edison |
| Protection Class | IP68 Submersible |
| Warranty | 2 Years Manufacturer Warranty |
| Mounting | Threaded Center Hole / Stand Mounted System |
| Thread Options | 1/2", 3/4", 1" Thread Center Hole |
| Beam Angle | 10°, 20°, 30°, 40°, 45°, 60° |
| Wire | Poly Cab 1 Metre Wire |
| Color Options | WW, CW, RGB, Red, Blue, Green |
| Available Wattages | 3W, 4W, 5W, 6W, 9W, 12W, 15W, 18W, 27W, 36W |
| Dimensions | Dia 4", 5", 6" (Thickness 32mm) |
Engineered Advantages
- Center hole allows the water nozzle to pass directly through the luminaire
- Perfect optical alignment produces intense internal light piping in the water stream
- Compatible with standard 1/2", 3/4", and 1" plumbing threads
- Robust SS 304/316 casing with complete IP68 underwater sealing
- Available with multi-color DMX/RGB compatibility for sequenced shows
Recommended Installations
- Dry Deck Fountains
- Center Jet Fountains
- Musical Fountains
- Plaza Fountains
Model Dimensional Variants & Wattage Matrix
| Model Code | Dimensions (Diameter / Height) | Rated Power Output | Action |
|---|---|---|---|
| HF052 | Dia 4", Thread 3/4", Thickness 32mm | 3W / 9W | |
| HF053 | Dia 4", Thread 1/2", Thickness 32mm | 4W / 12W | |
| HF054 | Dia 4", Thread 1/2", Thickness 32mm | 5W / 15W | |
| HF055 | Dia 5", Thread 1", Thickness 32mm | 6W / 18W | |
| HF056 | Dia 5", Thread 1", Thickness 32mm | 9W / 27W | |
| HF057 | Dia 6", Thread 1", Thickness 32mm | 12W / 36W |
