HF022•IP68 Submersible Submersible

SS Blue / White Rim Swimming Pool Light

Name: SS Blue / White Rim Swimming Pool Light
Brand: AQUALUXIS LIGHT
SKU: HF022

9-inch diameter stainless steel luminaire with high-output SMD 2835 Cree array and dual-tone rim choices.

HF022IP68

Pool Light Fittings•Pool Lighting

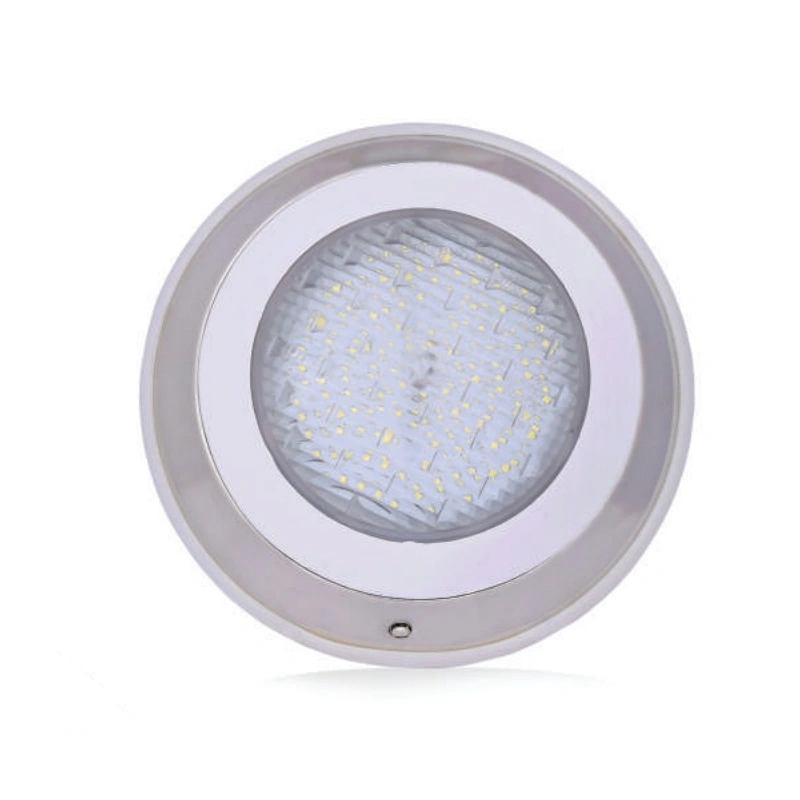

SS Blue / White Rim Swimming Pool Light

Model Series:HF022Verified Engineering Data

The HF022 pairs high-durability stainless steel structure with a choice of high-visibility blue or clean white trim rings. Equipped with a robust stainless steel wall mounting bracket and SMD 2835 Cree/Power LED platform.

Protection Class

IP68 Submersible

LED Emitter

SMD 2835 Cree / Power LED

Body Material

SS + PC Dual Finish

Beam Angle

20°, 30°, 40°, 45°, 60°, 90°

Mounting Type

Pool Wall Mounting (SS Bracket)

Warranty Period

2 Years Manufacturer Warranty

Download Brochure (PDF)

Need immediate sizing or installation guidance?Chat on WhatsApp

Technical Specifications Table

Body Material	SS + PC Dual Finish
Lens	PC Glass
LED Chip	SMD 2835 Cree / Power LED
Protection Class	IP68 Submersible
Warranty	2 Years Manufacturer Warranty
Mounting	Pool Wall Mounting (SS Bracket)
Beam Angle	20°, 30°, 40°, 45°, 60°, 90°
Wire	Poly Cab 1 Metre Wire
Color Options	WW / CW / RGB / Red / Blue / Green
Available Wattages	9 Watt / 12 Watt / 18 Watt
Dimensions	Dia 9", Depth 40 mm

Engineered Advantages

Dual bezel styling available in vibrant blue or pure white rim
Heavy duty stainless steel rear bracket ensures vibration-free mounting
SMD 2835 Cree / Power LED array with uniform beam diffusion
Double-sealed IP68 cable entry point with Poly Cab cable
Tested for continuous 24/7 underwater thermal reliability

Recommended Installations

Resort Pools
Private Swimming Pools
Commercial Aquatic Centers

Model Dimensional Variants & Wattage Matrix

Model Code	Dimensions (Diameter / Height)	Rated Power Output	Action
HF022-Blue	Dia 9", Depth 40mm	9W / 12W / 18W
HF022-White	Dia 9", Depth 40mm	9W / 12W / 18W

Engineering Support

Frequently Asked Questions

HF022 is certified IP68 waterproof for submerged underwater applications and is backed by a 2-Year Manufacturer Warranty under standard aquatic operation.
