Surface Model Swimming Pool Light (SS 304/316)
Full stainless steel surface-mount swimming pool light engineered for underwater durability and high photometric efficiency.
Surface Model Swimming Pool Light (SS 304/316)
Manufactured with premium SS 304/316 marine-grade stainless steel or aluminium plate, the AQUALUXIS LIGHT Surface Model Swimming Pool Light delivers reliable, long-lasting illumination for concrete and tiled swimming pools. Features IP68 water ingress protection, high-efficiency Power LED Edison chips, and customizable beam spread angles.
Technical Specifications Table
| Body Material | SS 304 / 316 / Aluminium Plate Model |
| Lens | PC Glass (Impact & UV Resistant) |
| LED Chip | Power LED Edison |
| Protection Class | IP68 Submersible Waterproof |
| Warranty | 2 Years Manufacturer Warranty |
| Mounting | Pool Wall Surface Mounting |
| Beam Angle | 10°, 20°, 30°, 40°, 45°, 90° |
| Wire | Poly Cab 1 Metre Submersible Wire |
| Color Options | WW (Warm White), CW (Cool White), RGB, Red, Blue, Green |
| Available Wattages | 1W, 3W, 6W, 9W, 12W, 18W, 27W, 36W |
| Dimensions | Dia 50mm to 6" (Depth 22mm - 1") |
Engineered Advantages
- Heavy-duty SS 304/316 body resistant to pool chemicals and corrosion
- True IP68 hermetically sealed underwater construction
- High luminous efficiency with Edison Power LED emitters
- Poly Cab submersible-grade marine wiring for long-term safety
- Flexible beam angles for tailored pool floor and wall washes
Recommended Installations
- Residential Swimming Pools
- Commercial Pools
- Hotels & Resorts
- Water Bodies
Model Dimensional Variants & Wattage Matrix
| Model Code | Dimensions (Diameter / Height) | Rated Power Output | Action |
|---|---|---|---|
| HF00 | Dia 50mm, Depth 1" | 1W / 3W | |

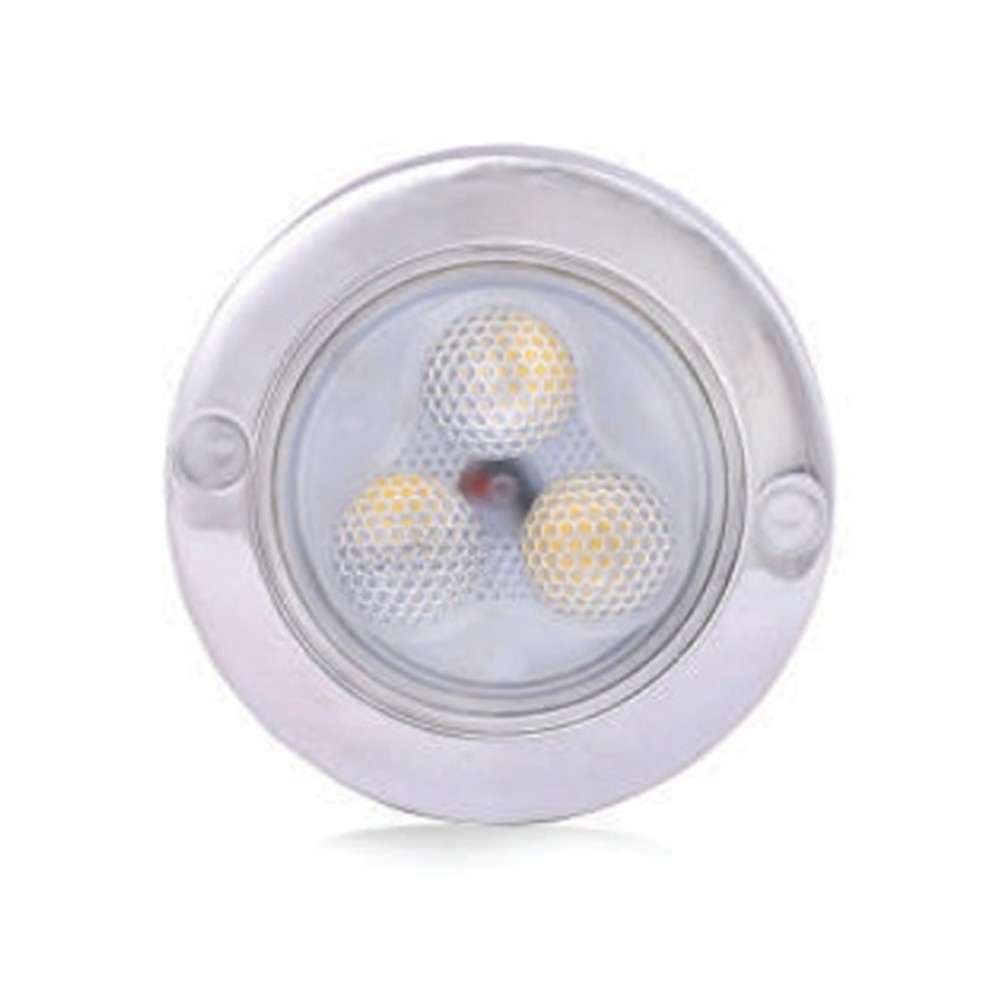

| HF01 | Dia 3", Depth 22mm | 3W / 9W | |

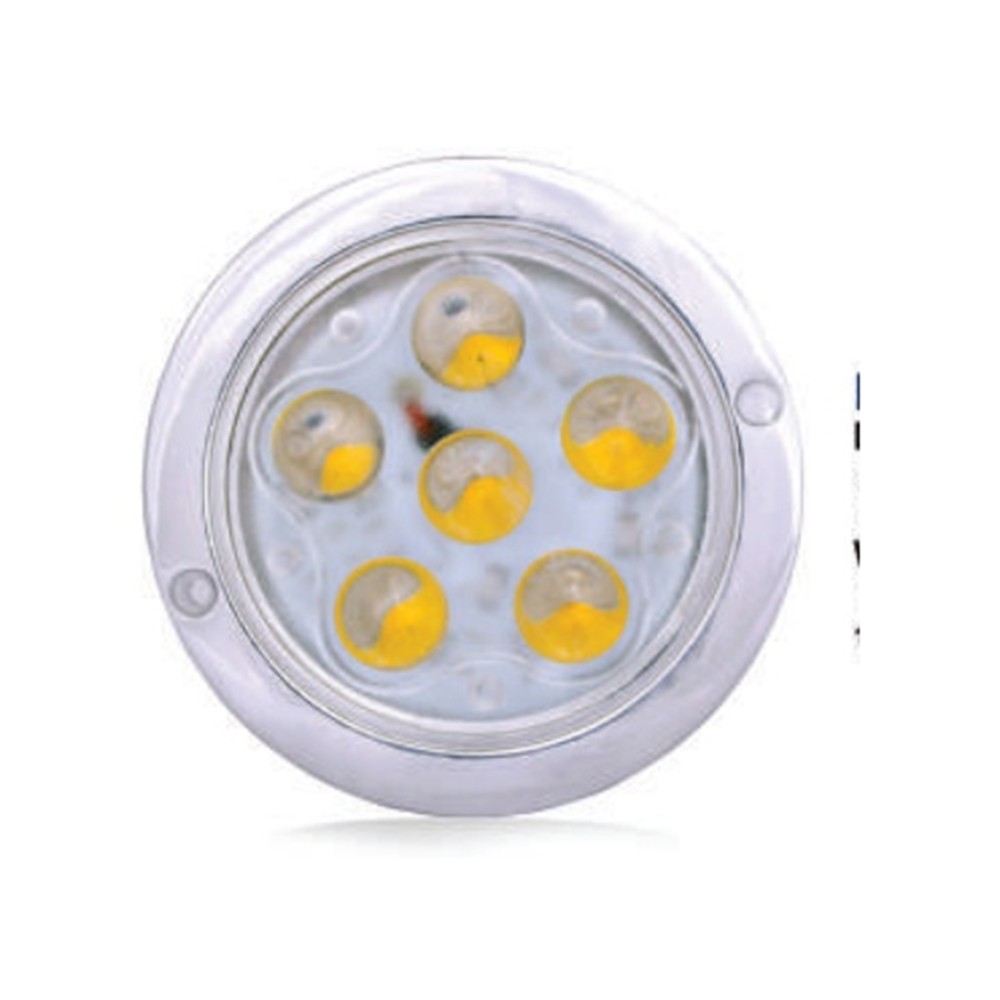

| HF02 | Dia 4", Depth 22mm | 6W / 18W | |

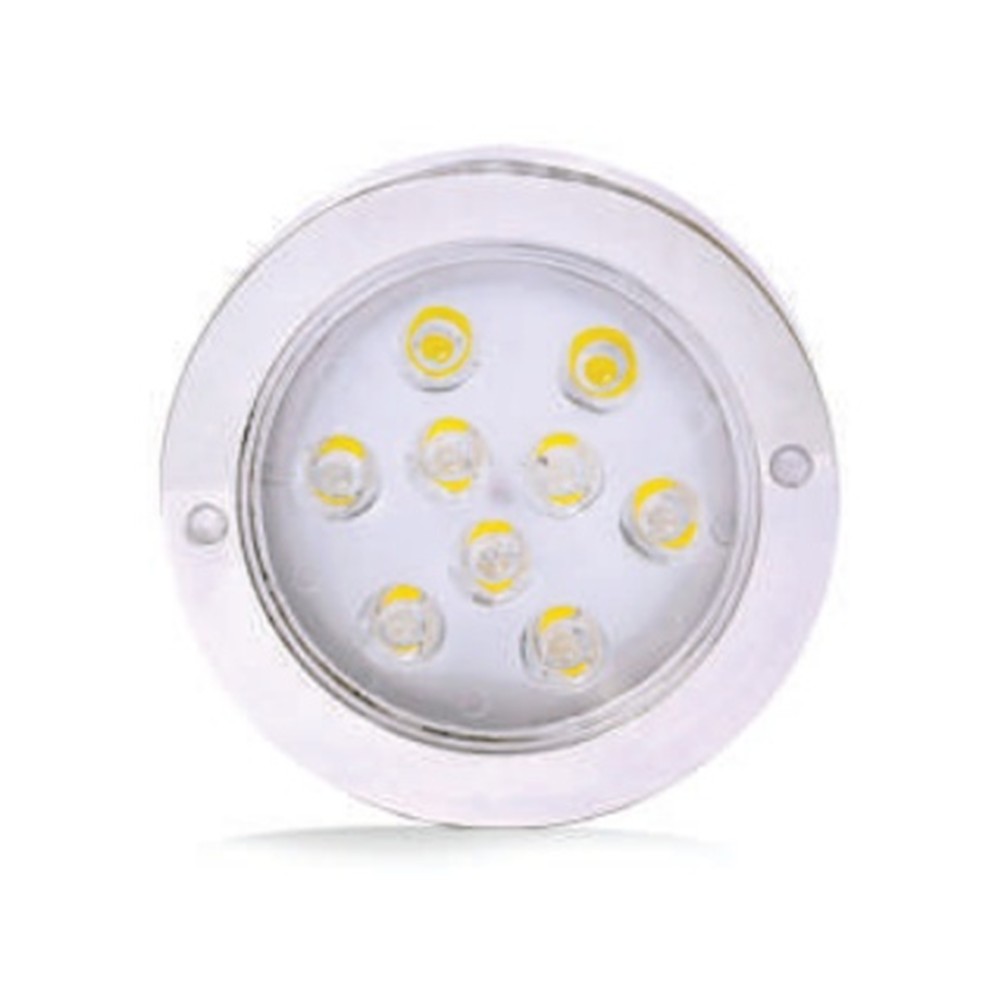

| HF03 | Dia 5", Depth 1" | 9W / 27W | |

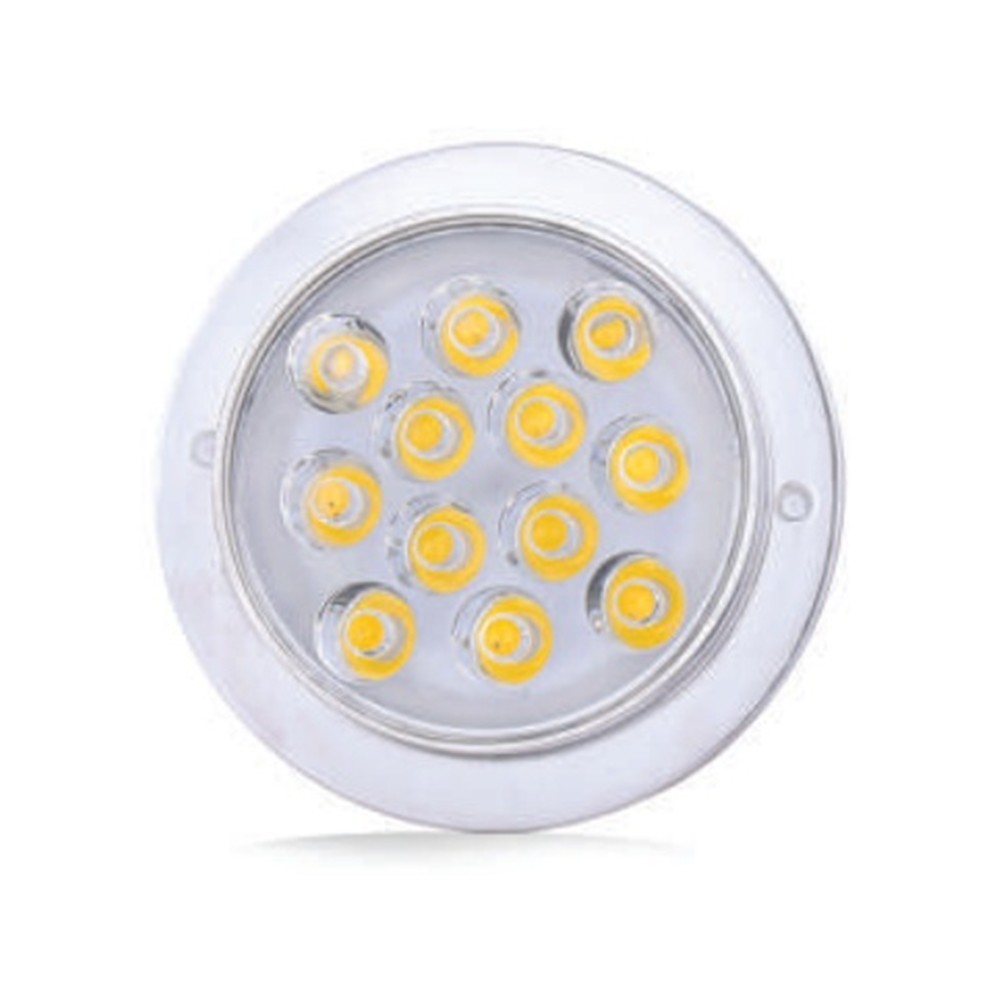

| HF04 | Dia 5", Depth 1" | 12W / 36W | |

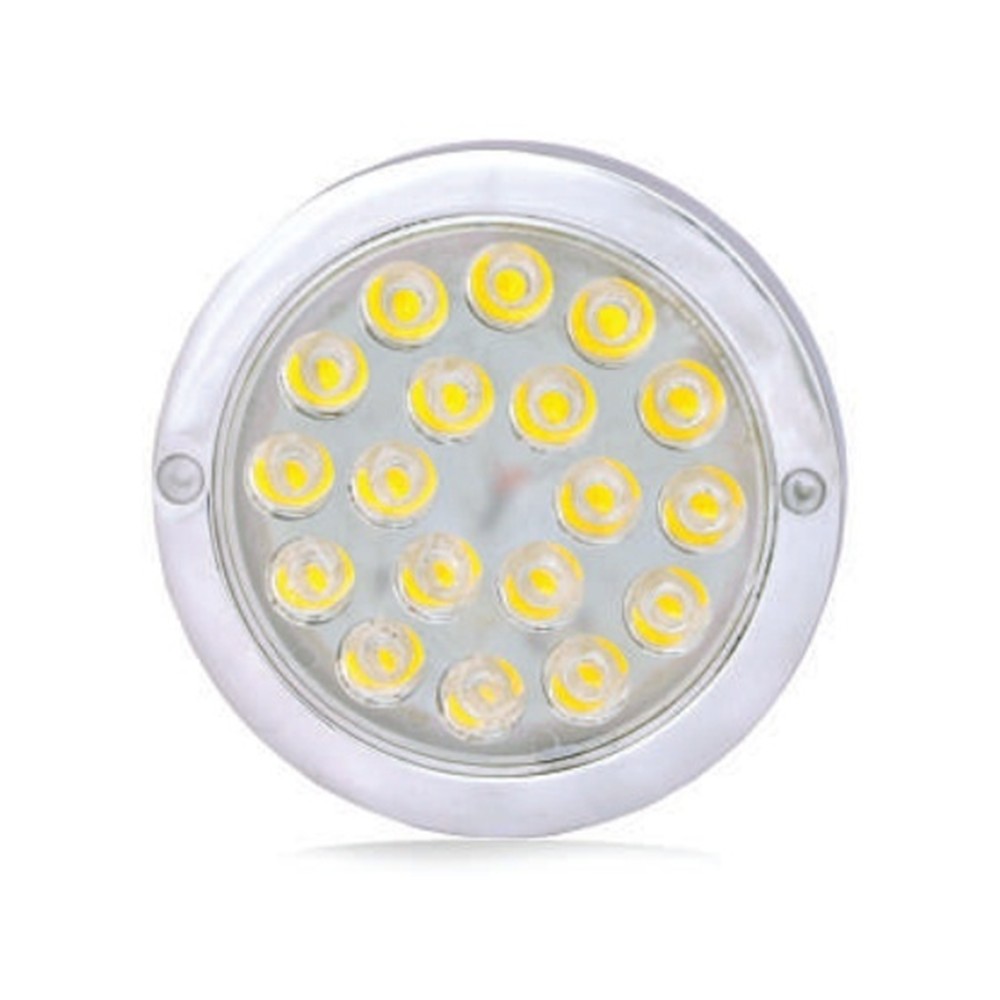

| HF05 | Dia 6", Depth 1" | 18W |
Frequently Asked Questions
