ABS Body Swimming Pool Light
Durable ABS & Polycarbonate swimming pool lights with superior chemical resistance and uniform light distribution.
ABS Body Swimming Pool Light
Constructed from high-grade ABS polymer and UV-stabilized Polycarbonate (PC) glass, this range provides chemical and chlorine resistance without oxidation. Ideal for both chlorinated and saltwater swimming pool installations, offering rich vibrant colors and minimal maintenance.
Technical Specifications Table
| Body Material | ABS + PC (Chlorine & Saltwater Resistant) |
| Lens | PC Glass |
| LED Chip | Power LED Edison |
| Protection Class | IP68 Submersible Waterproof |
| Warranty | 2 Years Manufacturer Warranty |
| Mounting | Pool Wall Mounting |
| Beam Angle | 20°, 30°, 40°, 45°, 60°, 90° |
| Wire | Poly Cab 1 Metre Wire |
| Color Options | WW, CW, RGB, Red, Blue, Green |
| Available Wattages | 3W, 6W, 9W, 12W, 18W, 27W, 36W |
| Dimensions | Dia 5.5" - 9" (Depth 40mm) |
Engineered Advantages
- Corrosion-free ABS composite body suited for high-salinity pools
- Robust PC glass lens with anti-glare micro-prism structure
- IP68 waterproof certification with precision silicone gaskets
- Edison Power LEDs providing vibrant color reproduction
- Standard wall bracket for seamless retrofit or new construction
Recommended Installations
- Residential Pools
- Clubhouse Pools
- Hotels & Resorts
- School Pools
Model Dimensional Variants & Wattage Matrix
| Model Code | Dimensions (Diameter / Height) | Rated Power Output | Action |
|---|---|---|---|
| HF06 | Dia 5.5", Depth 40mm | 3W / 9W | |

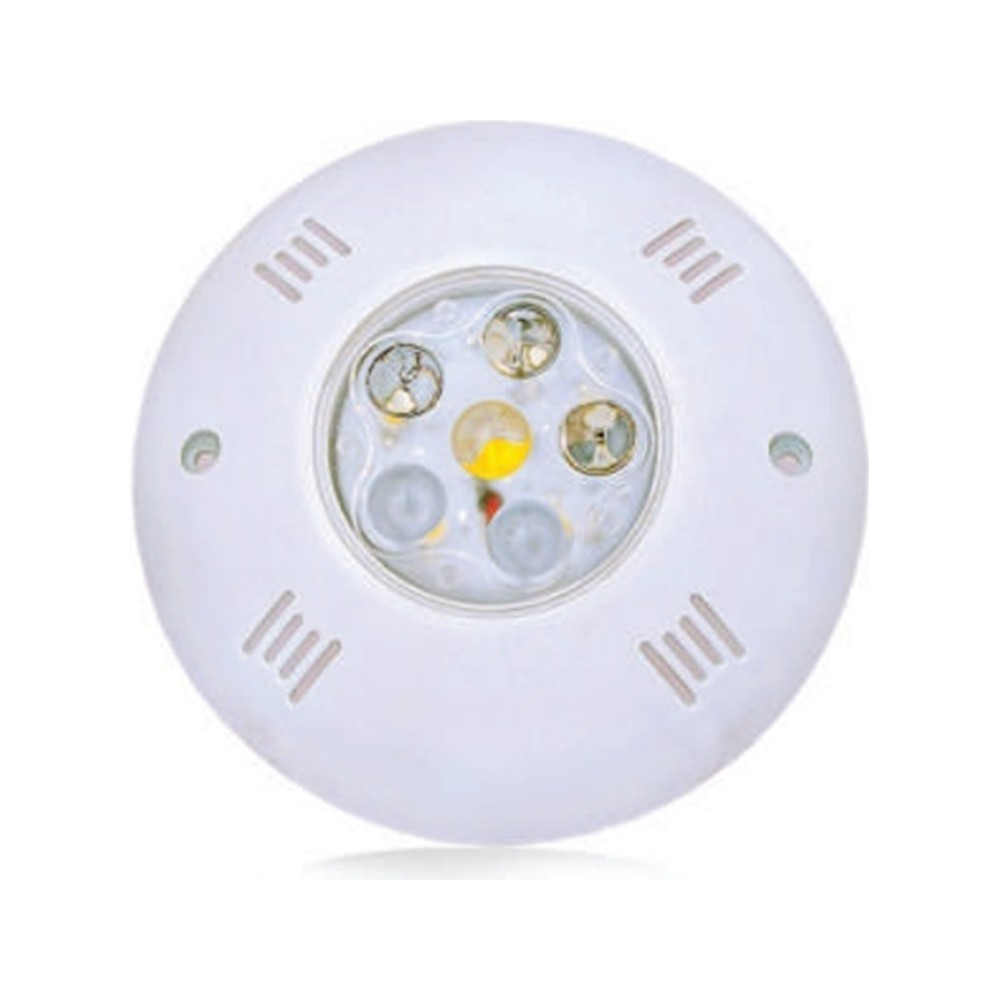

| HF07 | Dia 6.5", Depth 40mm | 6W / 18W | |

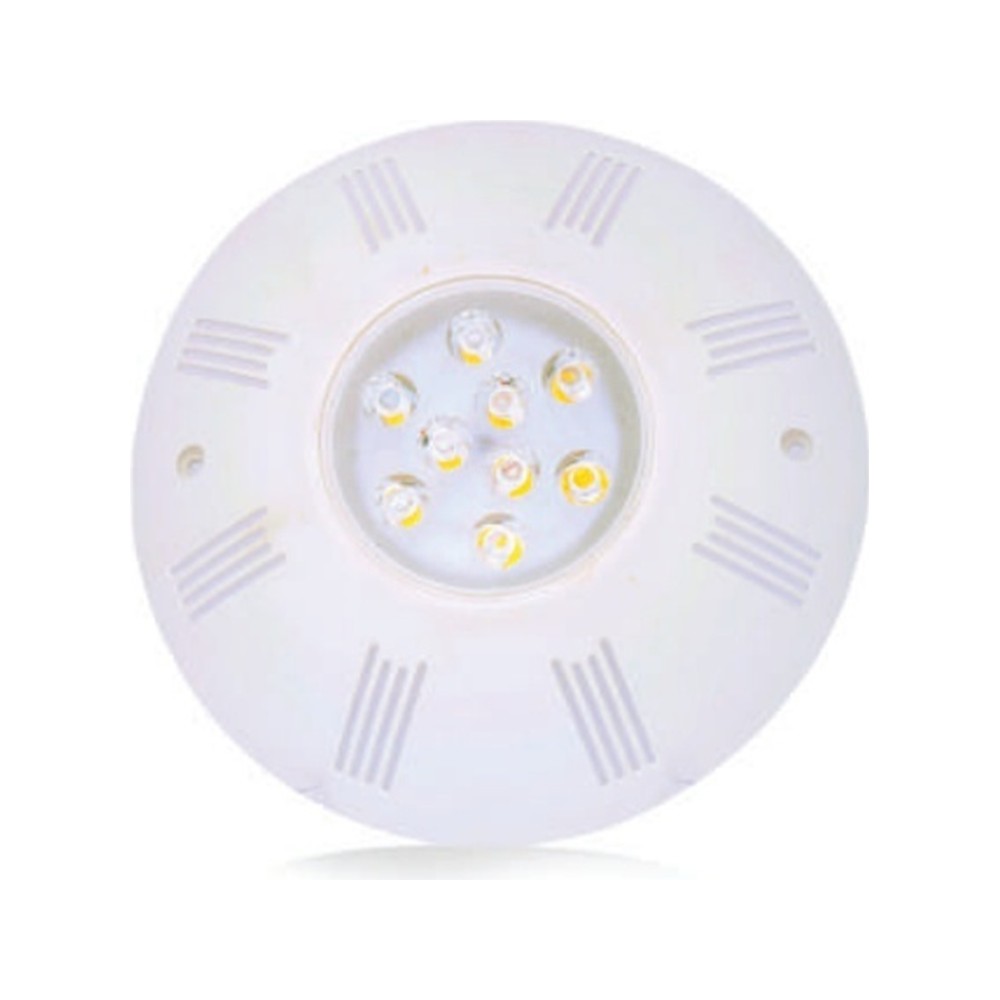

| HF08 | Dia 9", Depth 40mm | 9W / 27W | |

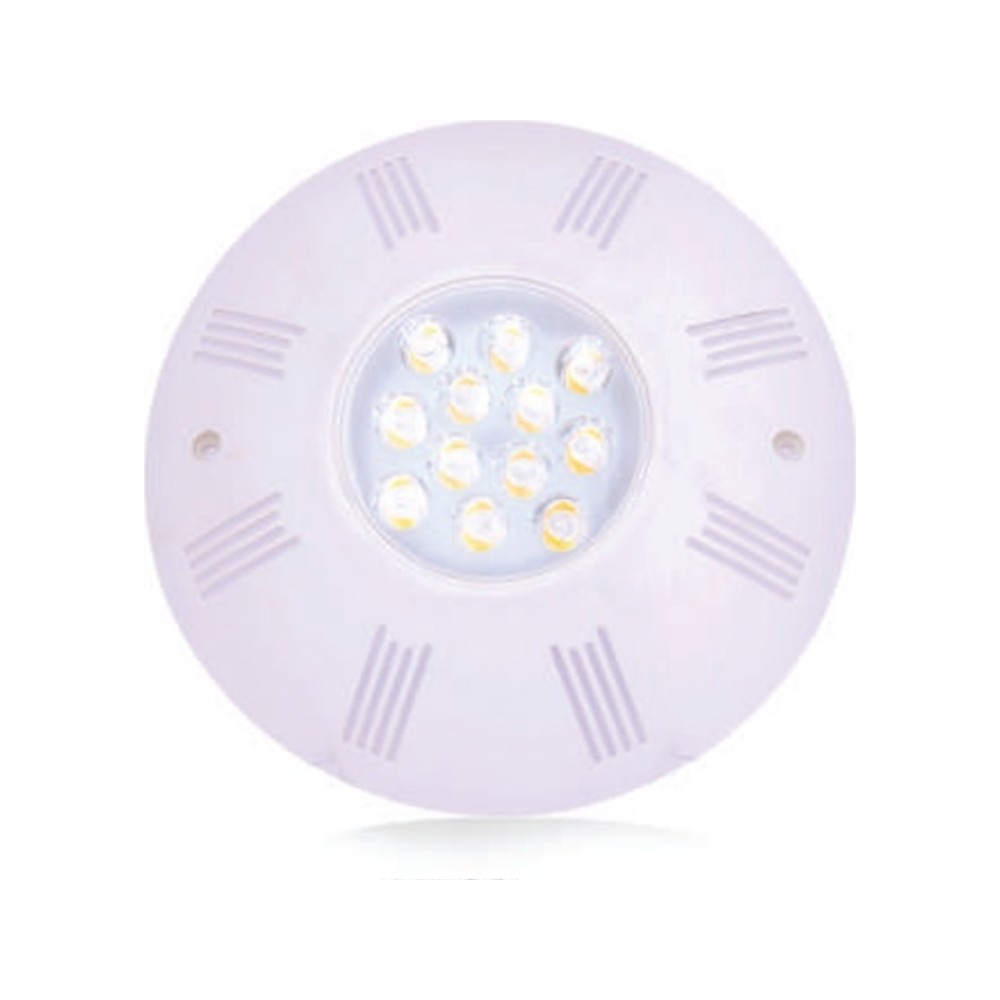

| HF09 | Dia 9", Depth 40mm | 12W / 36W | |

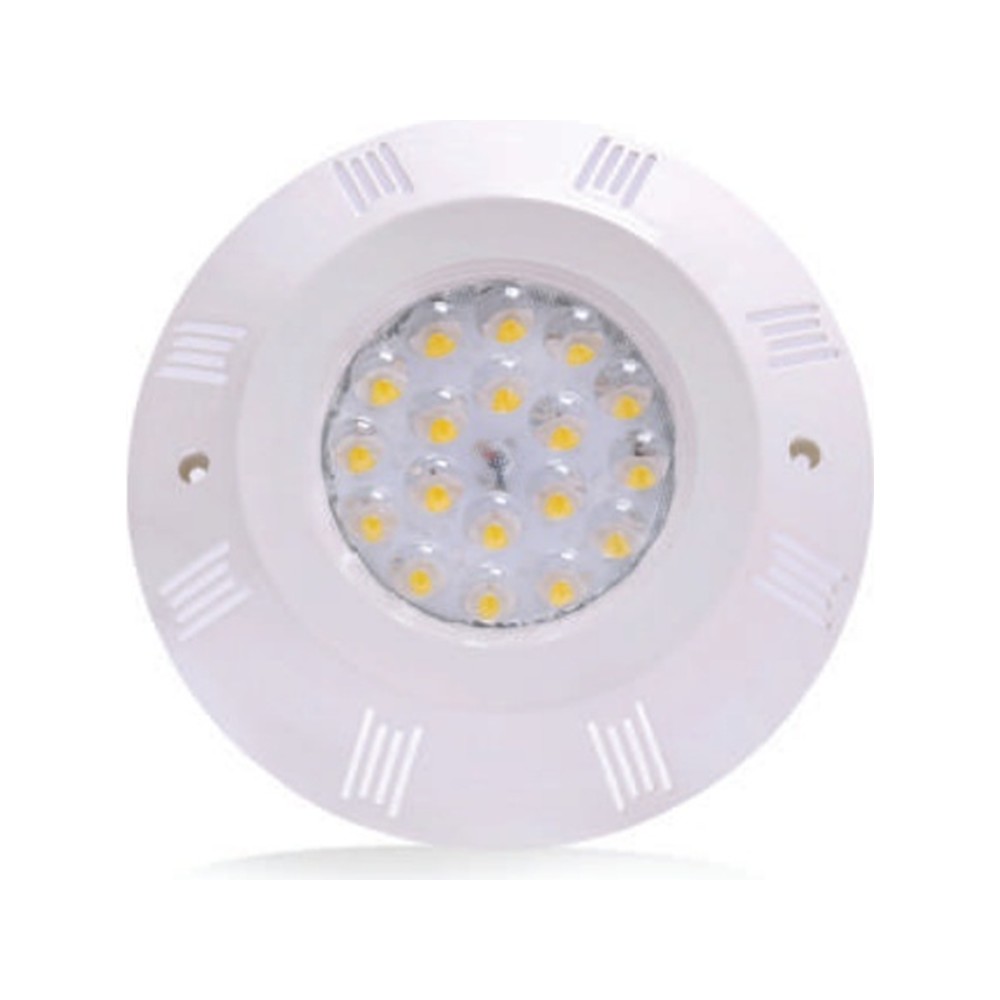

| HF010 | Dia 9", Depth 40mm | 18W |
