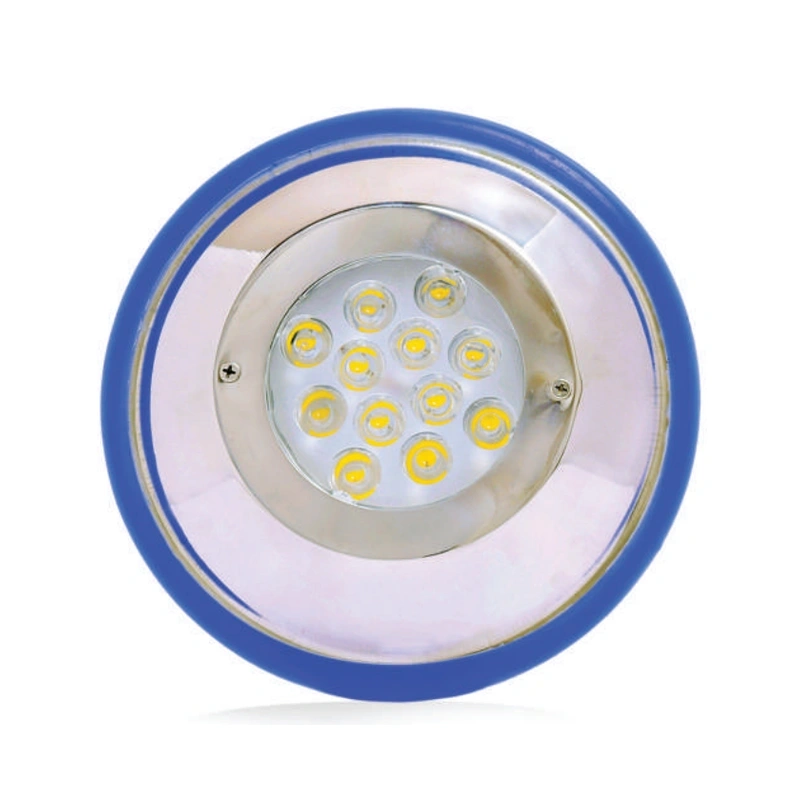

Full SS Body Swimming Pool Light
Marine-grade Stainless Steel swimming pool fixture with optional blue accent bezel ring.
Full SS Body Swimming Pool Light
Constructed with solid stainless steel housing and impact-rated PC glass, the HF020 and HF021 series offer industrial-grade robustness and refined visual elegance. Available with decorative aqua blue accent rings or pure polished steel rims.
Technical Specifications Table
| Body Material | SS 304/316 + PC |
| Lens | PC Glass |
| LED Chip | Cree / Edison |
| Protection Class | IP68 Submersible Waterproof |
| Warranty | 2 Years Manufacturer Warranty |
| Mounting | Pool Wall Mounting |
| Beam Angle | 20°, 30°, 40°, 45°, 60°, 90° |
| Wire | Poly Cab 1 Metre Wire |
| Color Options | WW, CW, RGB, Red, Blue, Green |
| Available Wattages | 6W, 9W, 12W, 18W, 27W, 36W |
| Dimensions | Dia 8", Depth 35 mm |
Engineered Advantages
- Solid marine grade stainless steel casing for maximum thermal performance
- Elegant polished bezel with optional radiant blue accent trim
- High power Cree / Edison LEDs with concentrated or wide optical lenses
- Heavy-duty internal potting and silicone gaskets for guaranteed IP68 seal
- Complies with international low-voltage safety standards
Recommended Installations
- Luxury Hotel Pools
- Resort Infinity Pools
- Private Residential Pools
- High-End Spas
Model Dimensional Variants & Wattage Matrix
| Model Code | Dimensions (Diameter / Height) | Rated Power Output | Action |
|---|---|---|---|
| HF020 | Dia 8", Depth 35mm | 6W / 9W / 18W / 27W | |
| HF021 | Dia 8", Depth 35mm | 12W / 36W |
