Concealed / In-Ground Swimming Pool Light
Flush-mount recessed stainless steel pool light for steps, shallow decks, coping edges, and submerged wall niches.
Concealed / In-Ground Swimming Pool Light
Engineered for flush recessing into concrete pool walls, steps, shallow tanning ledges, and swimming pool perimeter walkways. Constructed with SS 304/316 front trim and recessed sleeve housing, ensuring zero protrusion and a clean architectural finish.
Technical Specifications Table
| Body Material | SS 304 / 316 Trim + Recessed Sleeve |
| Lens | Toughened PC Glass |
| LED Chip | Power LED Edison |
| Protection Class | IP68 Submersible Waterproof |
| Warranty | 2 Years Manufacturer Warranty |
| Mounting | Swimming Pool Concealed Flush Mounting |
| Beam Angle | 20°, 30°, 40°, 45°, 60°, 90° |
| Wire | Poly Cab 1 Metre Wire |
| Color Options | WW, CW, RGB, Red, Blue, Green |
| Available Wattages | 1W, 3W, 6W, 9W, 12W, 18W, 27W, 36W |
| Cutout Sizes | Cutout 32mm to 110mm (Outer Dia 45mm to 140mm) |
Engineered Advantages
- Concealed flush-mount design eliminates trips or snags in shallow water
- Machined SS 304/316 face plate withstands foot traffic and pressure
- High luminous output from compact Edison Power LED emitters
- Supplied with rugged installation sleeve for casting into concrete
- IP68 submersible certification with factory-tested water seal
Recommended Installations
- Pool Steps & Risers
- Baja Shelves & Tanning Ledges
- Perimeter Pool Walkways
- Spas & Jacuzzis
- Water Fall Basins
Model Dimensional Variants & Wattage Matrix
| Model Code | Dimensions (Diameter / Height) | Rated Power Output | Action |
|---|---|---|---|

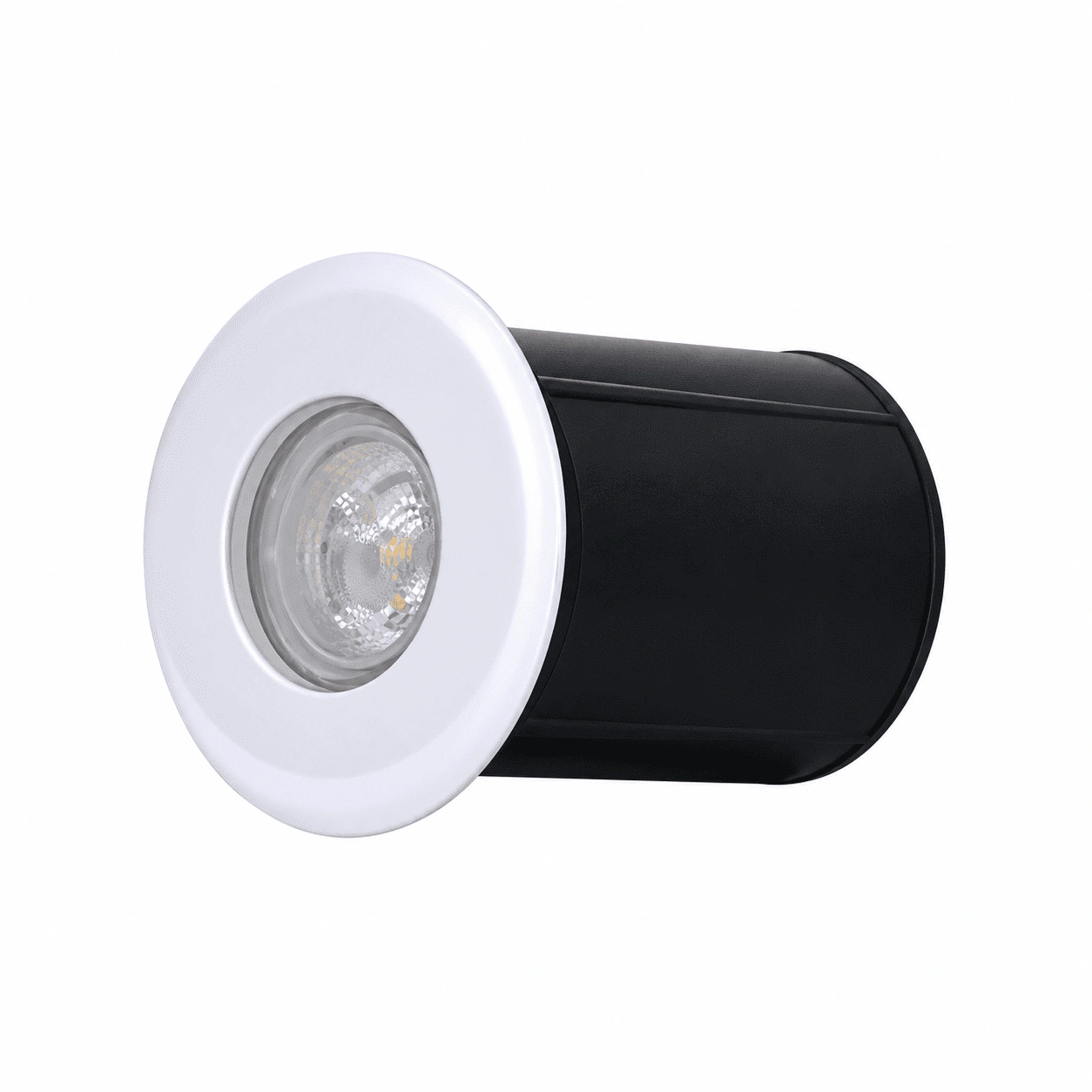

| HF023 | Outer 45mm, Cutout 32mm, Height 55mm | 1W / 3W | |

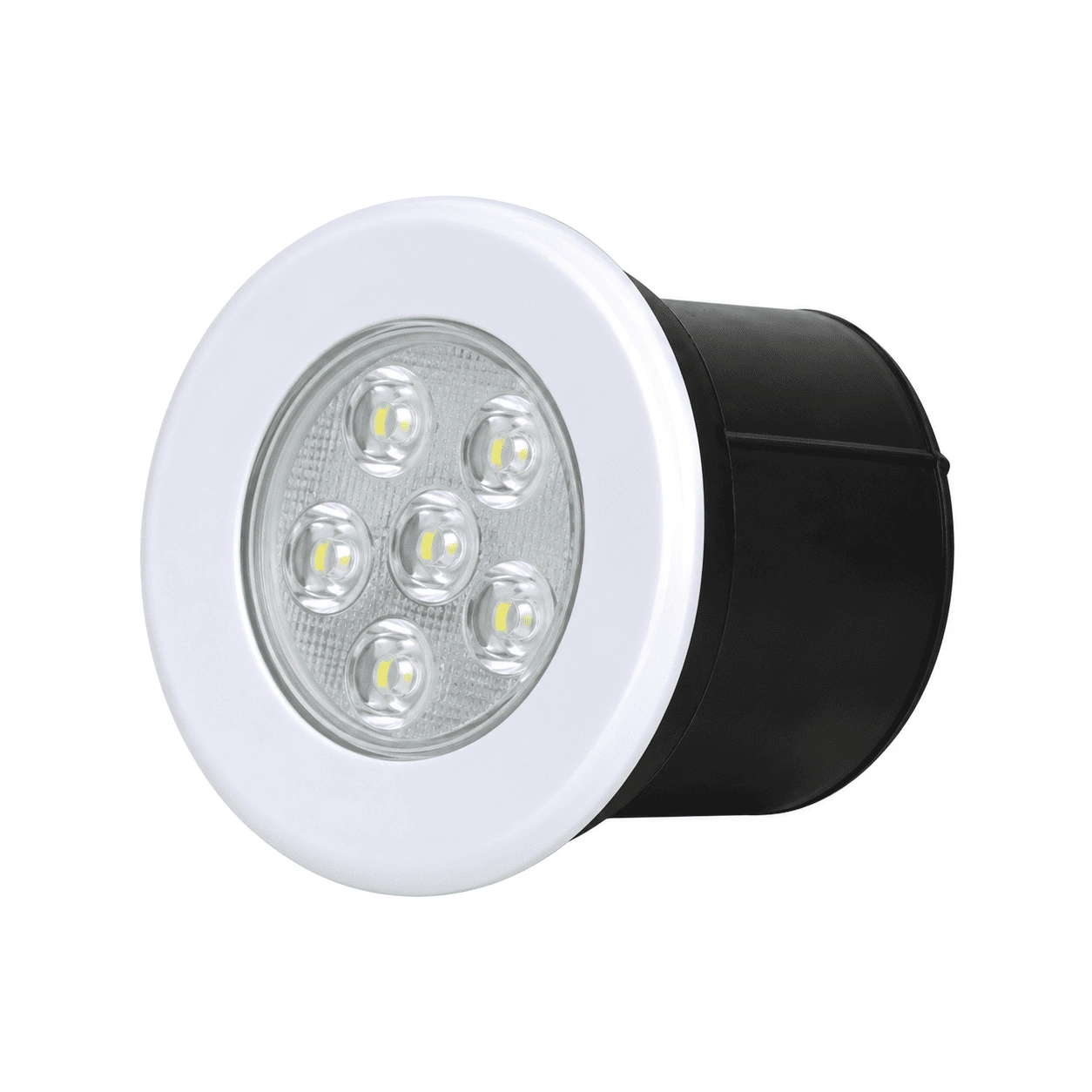

| HF024 | Outer 65mm, Cutout 60mm, Height 56mm | 3W / 9W | |
| HF025 | Outer 110mm, Cutout 85mm, Height 46mm | 6W / 18W | |

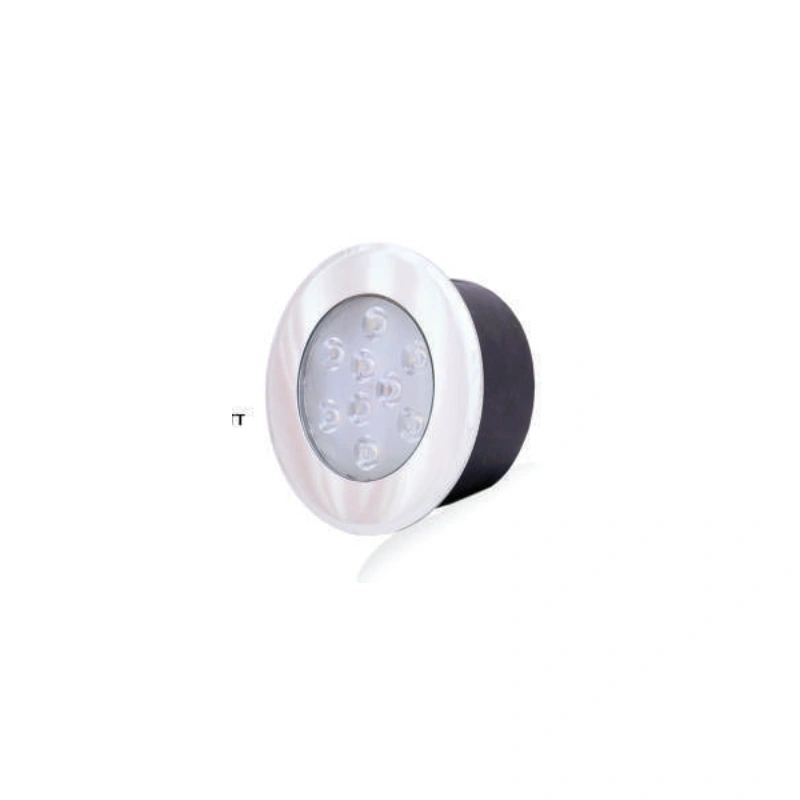

| HF026 | Outer 140mm, Cutout 110mm, Height 50mm | 9W / 27W | |

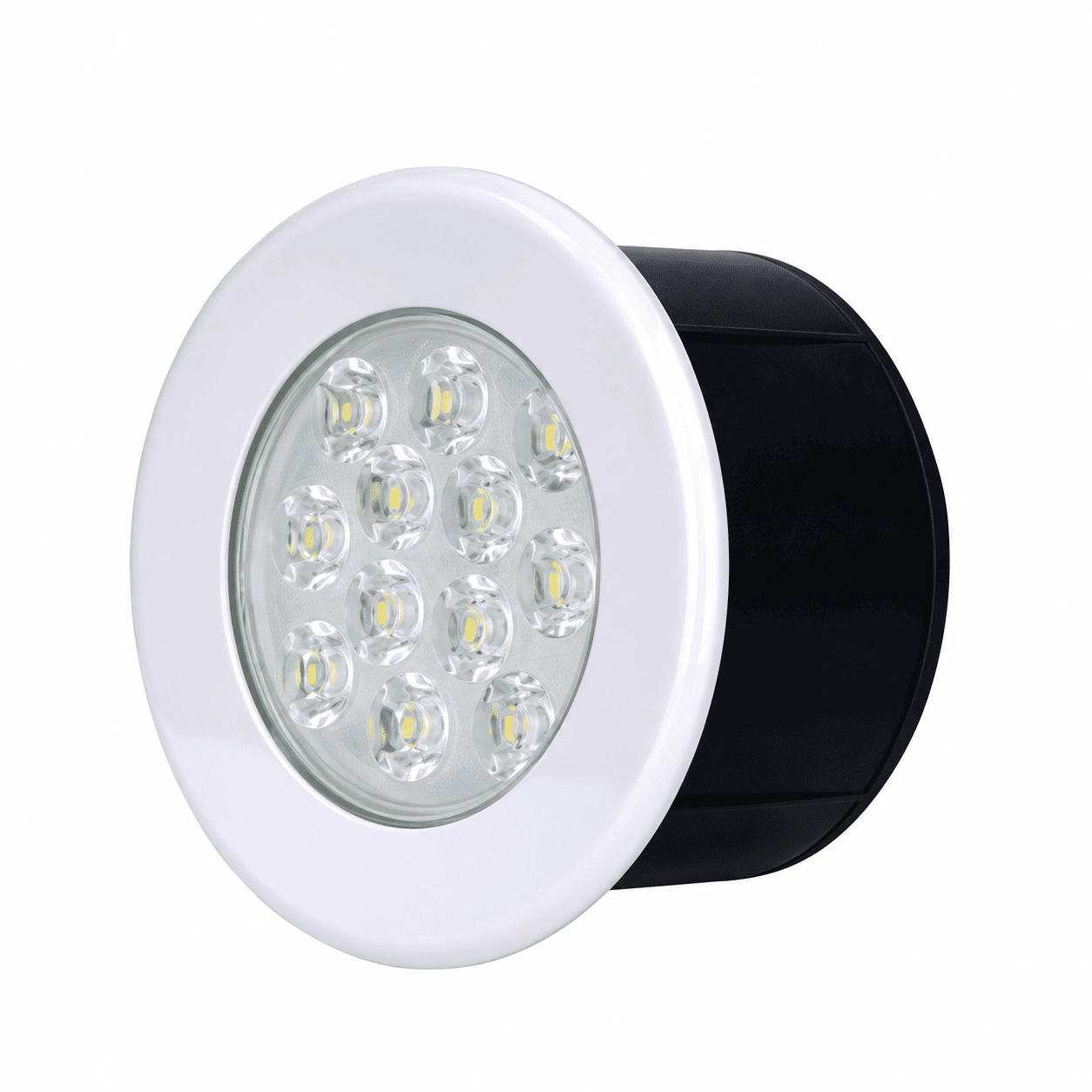

| HF027 | Outer 140mm, Cutout 110mm, Height 50mm | 12W / 36W |
